A UK-produced range of high-performance
pre-insulated pipe systems and services that are helping meet the challenge of heat decarbonisation

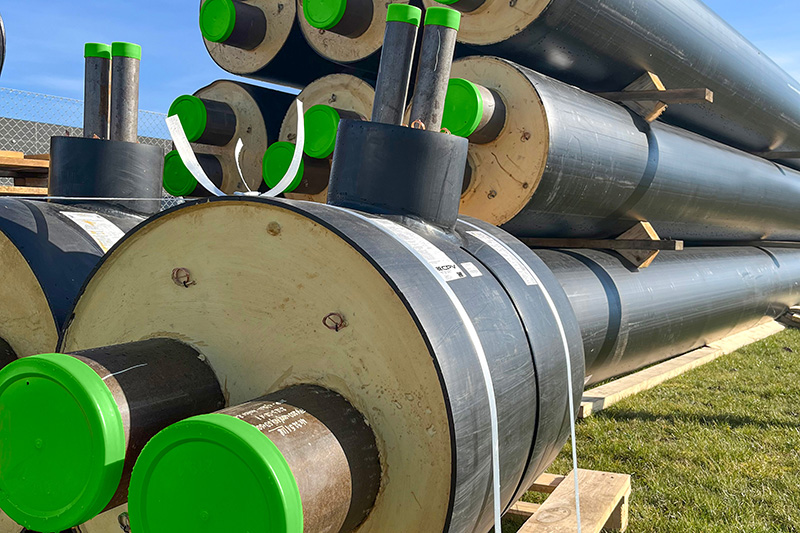

The result of many decades of research and development, CPV’s Hiline range of bonded pre-insulated pipe systems offers a safe, secure and efficient means of transporting hot and chilled liquids – whatever the application.

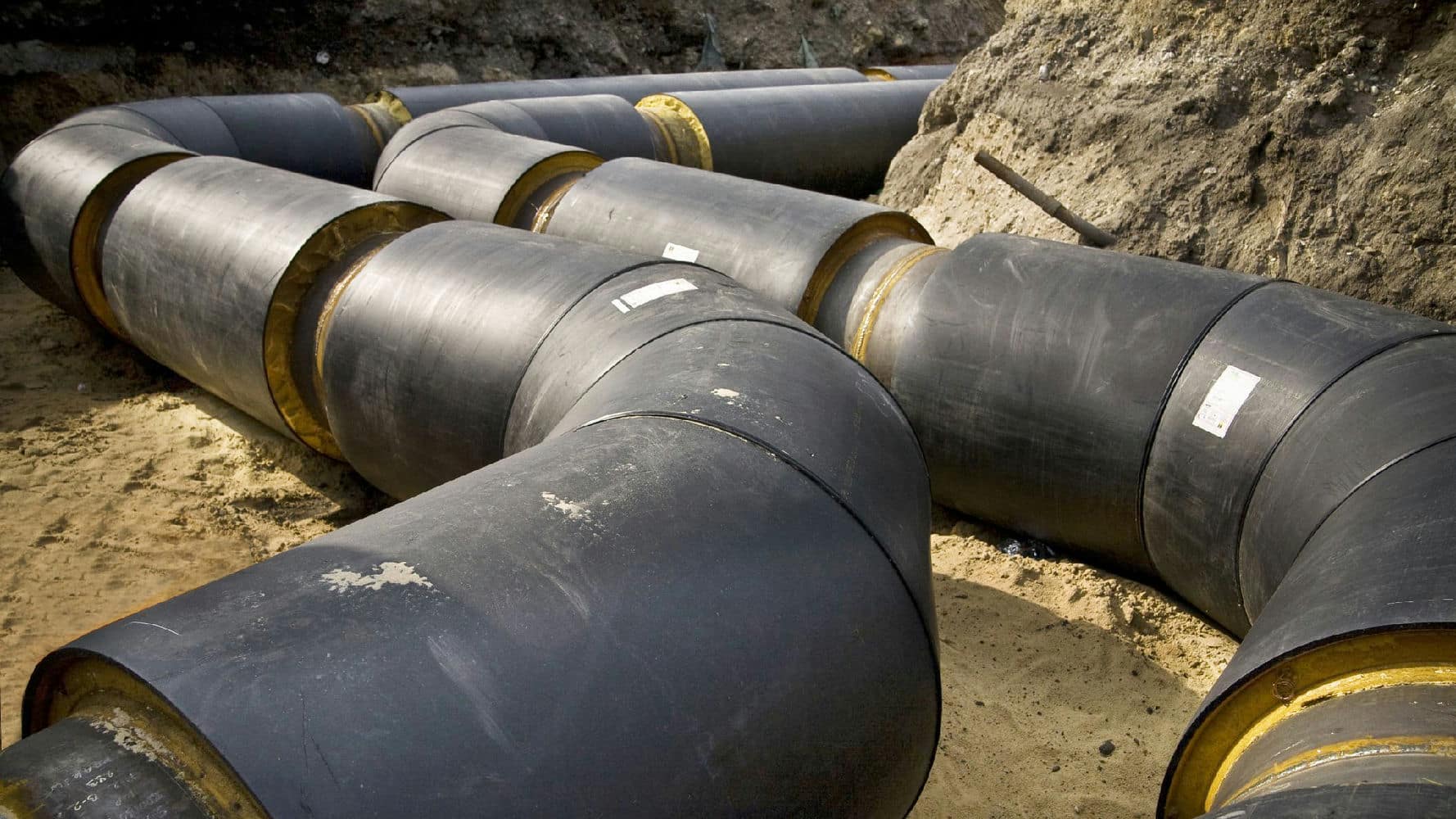

Proven at countless sites throughout the world, each system has been carefully designed and manufactured to deliver outstanding performance and exceptional levels of reliability.
Efficient Insulation
- High-efficiency CFC-free, rigid polyurethane foam insulation
- Different thicknesses available (Series 1, 2 and 3)
- Available with optional trace or maintained heating cables
- Mineral wool insulation layer (Hiline Steam system only)
Tough Outer Casings
- High Density Polyethylene (HDPE) casing on standard systems
- Medium Density Polyethylene (MDPE) casing on flexible systems
- Barrier-pipe casing available for use in contaminated ground
- UV-stable, above-ground casing options available
Strong & Secure Fittings
- Range of secure joints and fittings available
- HDPE electro-fusion, mechanical and heat-shrinkable case jointing options

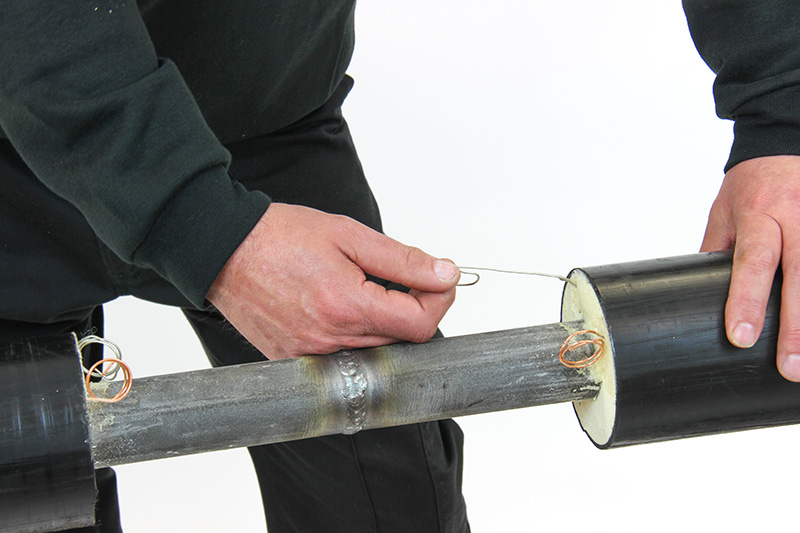

Surveillance Systems
The Hiline Range
The table below summarises the range of service pipe options within Hiline. We are also able to create bespoke pre-insulated pipe systems that can satisfy applications way beyond heating and cooling networks - such as those for industrial processes and critical infrastructure. Please contact our sales team should you wish to discuss bespoke requirements.
 |
 |
 |
 |
 |
 |
 |
|
| Size Range (mm) |
UNO DN20 to DN250 DUO DN20 to DN100 |
UNO DN20 to DN150 DUO DN20 to DN65 |
UNO DN20 to DN150 DUO DN20 to DN65 |
UNO DN20 to DN100 DUO DN20 to DN65 |
UNO DN40 to DN600 DUO DN40 to DN200 |
UNO DN20 to DN600 DUO DN20 to DN250 |
UNO DN15 to DN150 DUO DN15 to DN100 |
|---|---|---|---|---|---|---|---|
| System Standards (*) | (*) EN 253 EN 15874 EN 15494 |
Technical Specification OFI CERT ZG 200-2 Class A | Technical Specification OFI CERT ZG 200-2 Class A | EN 15632 | (*) EN 253 | EN 253, EN 448, EN 488, EN 489, EN 13941 & EN 14419 | (*) EN 253 |
| Service Pipe Standards | DIN 8077DIN 8078 | None applicable as it has a unique compositeconstruction | None applicable as it has a unique composite construction | EN 12318-2 DIN 16892 DIN 16893 | ISO 14692-1/2/3/4 ASTM D2310 ASTM D2996 | Seamless EN 10216-2 Welded EN 10217-2 & 5 | EN 1057 |
| Service Pipe Material & Grade | PP-R & PP-RCT Multi-layer composite fibre reinforced | PE-Xa with oxygen diffusion barrier and aramid fibre reinforcement mesh | PE-Xa with oxygen diffusion barrier and aramid fibre reinforcement mesh | PE-Xa with oxygen diffusion barrier | GRE ASTM D2310-11FX1 & ASTM D2996 | STEEL St 37.0 Seamless R-35, P235 GH Welded P235 GH, P235 TR1 & TR2 | COPPER Cu-DHP, R250 & R290 |
| Casing Pipe Material | HDPE and MDPE Barrier | Corrugated LDPE | Corrugated LDPE | Corrugated LDPE | HDPE | **HDPE and Metallic Spiral | HDPE and MDPE Barrier |
| Max Operating Pressure (bar) | 10 | 10 | 10 | 6 | 16 | 25 | 10 |
| Max Cont Operating Temp (ºC) | 80 | 80 | 95 | 80 | 95 | 140 | 110 |
| Max Peak Operating Temp (ºC) | 95 | 95 | 115 | 95 | 120 | 152 | 140 |
| Insulation Material | PUR | PUR | PUR | PUR | PUR | PUR | PUR |
| Insulation Series | 1 & 2 | 1 & 2 | 1 & 2 | 1 & 2 | 1 & 2 | 1,2 & 3 | 1 & 2 |
| Insulation Value (w/mK) | 0.027 | 0.021 | 0.027 | 0.021 | 0.021 | Up to 0.0231 | 0.024 |
| Delivered Lengths | 6m & 12m | Up to 570m (coil) | Up to 570m (coil) | Up to 770m (coil) | 9m & 11.9m | 6m & 12m | 6m |
| Electronic Surveillance | YES | YES | YES | YES | YES | YES | YES |
| Clover | FibreFlex | FibreFlex Pro | eFlex | GRE | Steel | Copper | |
| Size Range (mm) |
UNO DN20 to DN250 DUO DN20 to DN100 |
UNO DN20 to DN150 DUO DN20 to DN65 |
UNO DN20 to DN150 DUO DN20 to DN65 |
UNO DN20 to DN100 DUO DN20 to DN65 |
UNO DN40 to DN600 DUO DN40 to DN200 |
UNO DN20 to DN600 DUO DN20 to DN250 |
UNO DN15 to DN150 DUO DN15 to DN100 |
|---|---|---|---|---|---|---|---|
| System Standards (*) | (*) EN 253 EN 15874 EN 15494 |
Technical Specification OFI CERT ZG 200-2 Class A | Technical Specification OFI CERT ZG 200-2 Class A | EN 15632 | (*) EN 253 | EN 253, EN 448, EN 488, EN 489, EN 13941 & EN 14419 | (*) EN 253 |
| Service Pipe Standards | DIN 8077DIN 8078 | None applicable as it has a unique compositeconstruction | None applicable as it has a unique composite construction | EN 12318-2 DIN 16892 DIN 16893 | ISO 14692-1/2/3/4 ASTM D2310 ASTM D2996 | Seamless EN 10216-2 Welded EN 10217-2 & 5 | EN 1057 |
| Service Pipe Material & Grade | PP-R & PP-RCT Multi-layer composite fibre reinforced | PE-Xa with oxygen diffusion barrier and aramid fibre reinforcement mesh | PE-Xa with oxygen diffusion barrier and aramid fibre reinforcement mesh | PE-Xa with oxygen diffusion barrier | GRE ASTM D2310-11FX1 & ASTM D2996 | STEEL St 37.0 Seamless R-35, P235 GH Welded P235 GH, P235 TR1 & TR2 | COPPER Cu-DHP, R250 & R290 |
| Casing Pipe Material | HDPE and MDPE Barrier | Corrugated LDPE | Corrugated LDPE | Corrugated LDPE | HDPE | **HDPE and Metallic Spiral | HDPE and MDPE Barrier |
| Max Operating Pressure (bar) | 10 | 10 | 10 | 6 | 16 | 25 | 10 |
| Max Cont Operating Temp (ºC) | 80 | 80 | 95 | 80 | 95 | 140 | 110 |
| Max Peak Operating Temp (ºC) | 95 | 95 | 115 | 95 | 120 | 152 | 140 |
| Insulation Material | PUR | PUR | PUR | PUR | PUR | PUR | PUR |
| Insulation Series | 1 & 2 | 1 & 2 | 1 & 2 | 1 & 2 | 1 & 2 | 1,2 & 3 | 1 & 2 |
| Insulation Value (w/mK) | 0.027 | 0.021 | 0.027 | 0.021 | 0.021 | Up to 0.0231 | 0.024 |
| Delivered Lengths | 6m & 12m | Up to 570m (coil) | Up to 570m (coil) | Up to 770m (coil) | 9m & 11.9m | 6m & 12m | 6m |
| Electronic Surveillance | YES | YES | YES | YES | YES | YES | YES |
We are able to offer a comprehensive, off-site pre-fabrication service for special pre-insulated pipe sections for heating and cooling networks.
Complementing the Hiline range of pre-insulated pipe systems, we offer what is effectively an ‘emergency service’ for on-site installers of heat networks.

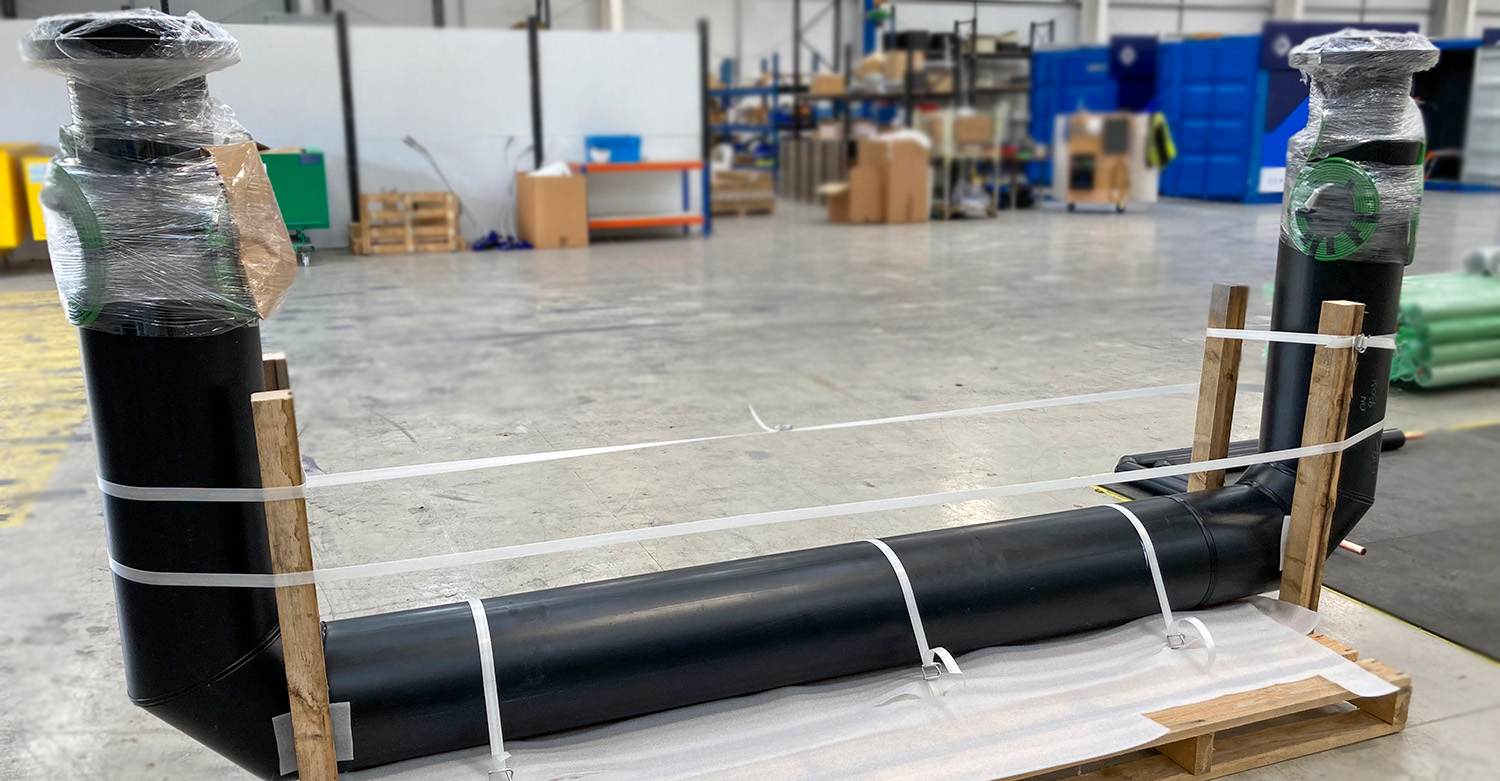

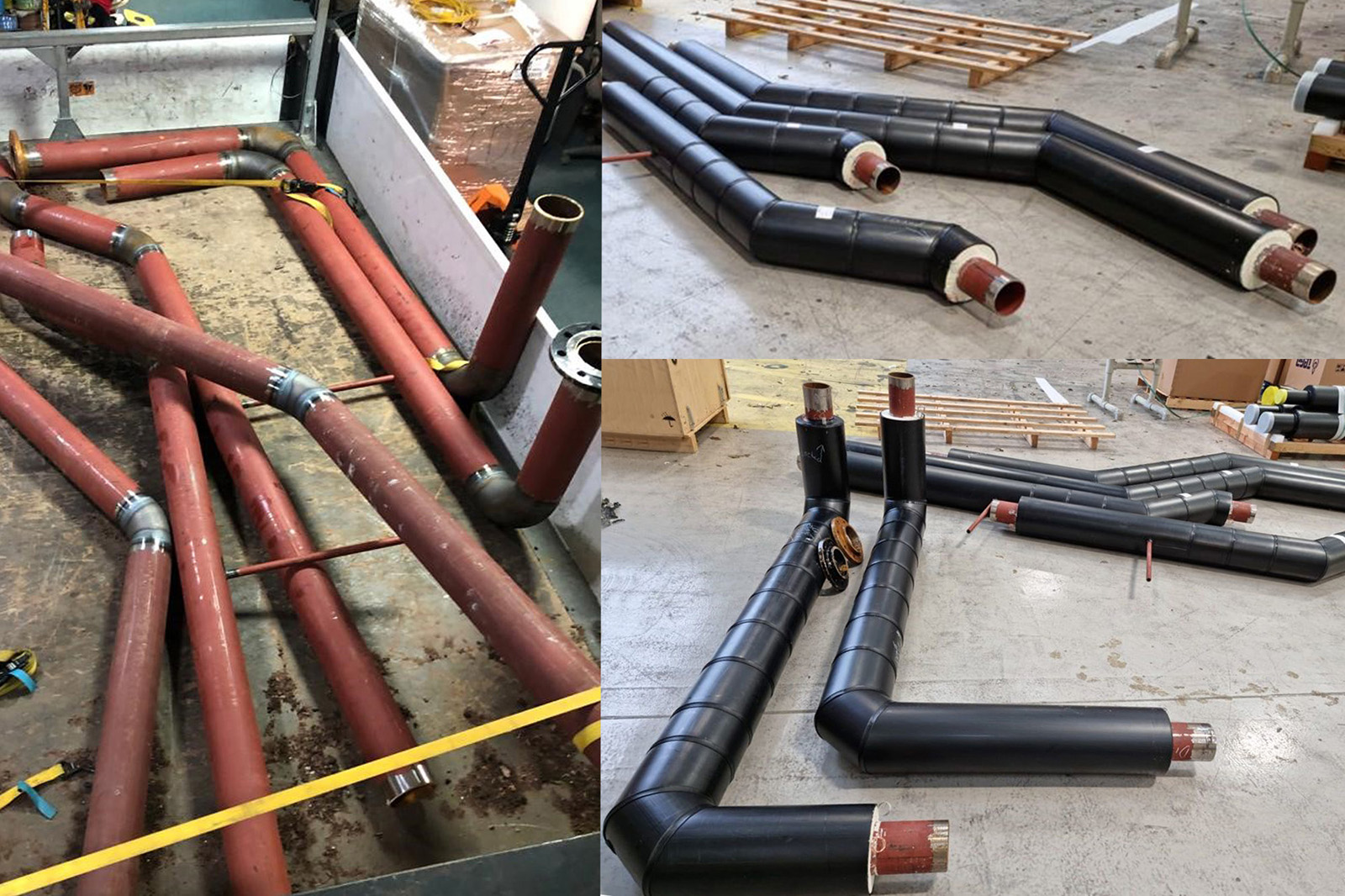

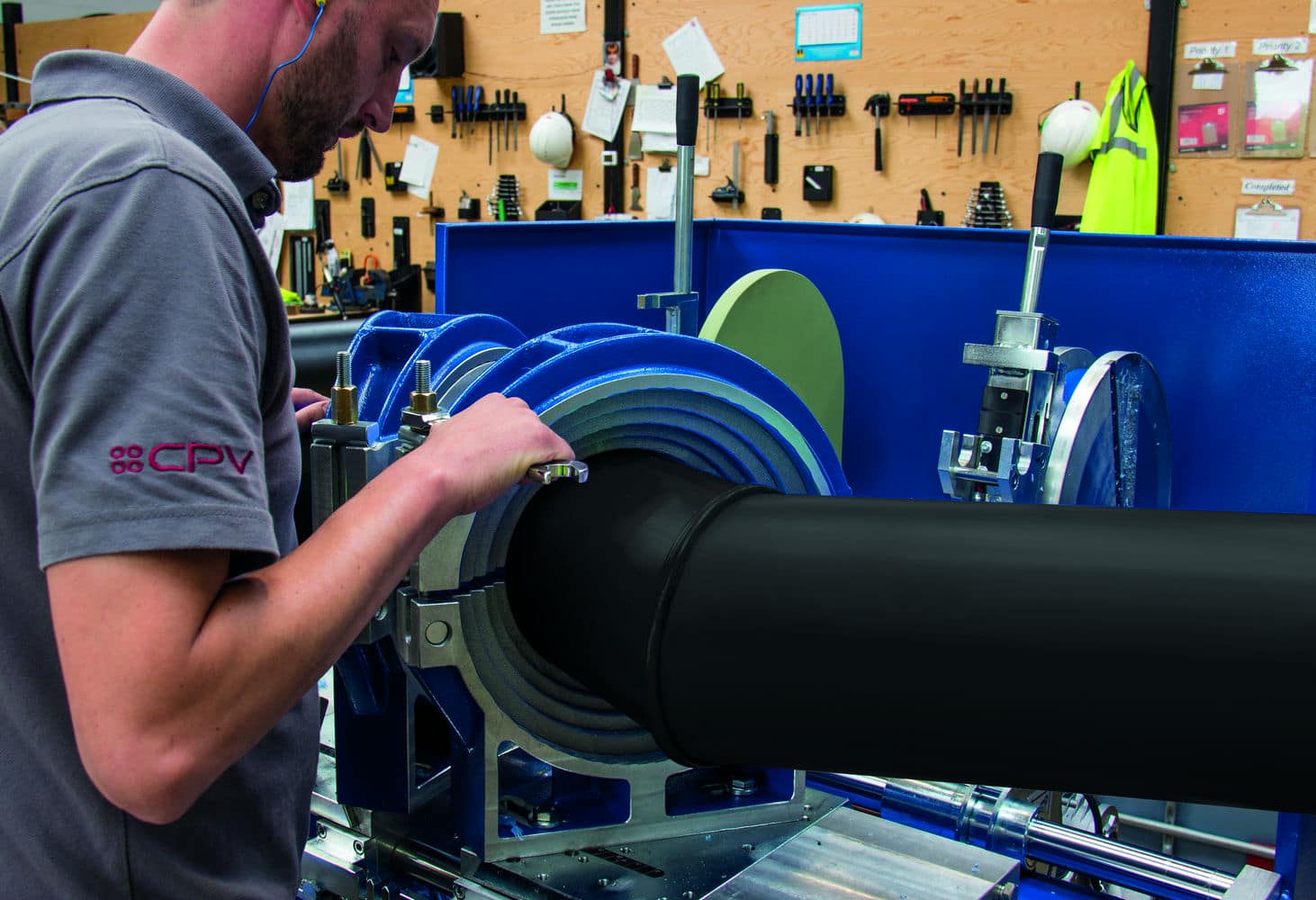

Installers have the option for us to fully pre-fabricate pre-insulated spool pieces in our Hampshire production facility, or for them to fabricate the service pipe themselves on site and send it to us to insulate with bonded polyurethane foam, tough HDPE/LDPE casings and, where required, alarm wires.
This service is proving to be very popular with our clients – particularly when they encounter hidden obstructions underground, such as utilities. Rather than wait for an overseas manufacturer to produce and ship a pre-fabricated spool piece to them – with all the delays that can entail – our clients enjoy access our fast-turnaround service and get their project back on track within a few days. Which when a trench is open and potentially involving a road closure, every hour counts.
This is available for all systems in the Hiline range, covering all choices of service pipe, whether that be steels, copper, polymers or composites.
The true cost of insulation ...
The effects of using a more efficient insulation don’t appear to be much at face value, but factor in a minimum 30-year life-cycle cost of operating the system and the savings – both financial and environmental – mount up significantly.
By making a small additional investment – equivalent to around 10 percent of the material cost at the time of installation – in order to upgrade the Hiline pipe system’s insulation thickness to Series Two, the cost of the heat lost would be reduced by some £1.2million – also saving 5,091 tonnes of CO2 from being emitted. The graph shown demonstrate the effects that this can have.

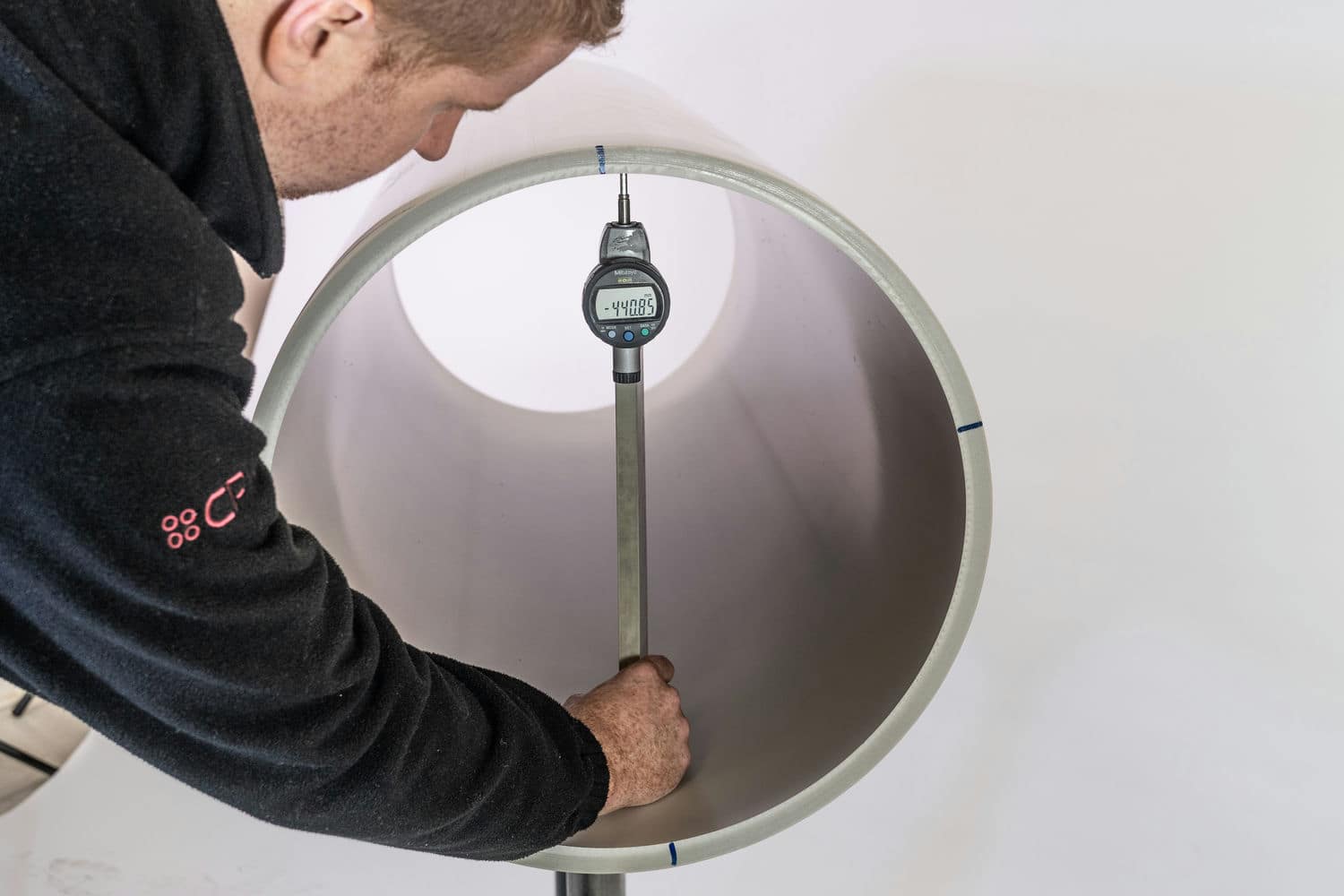

Quality Assured
Sustainability and the Environment

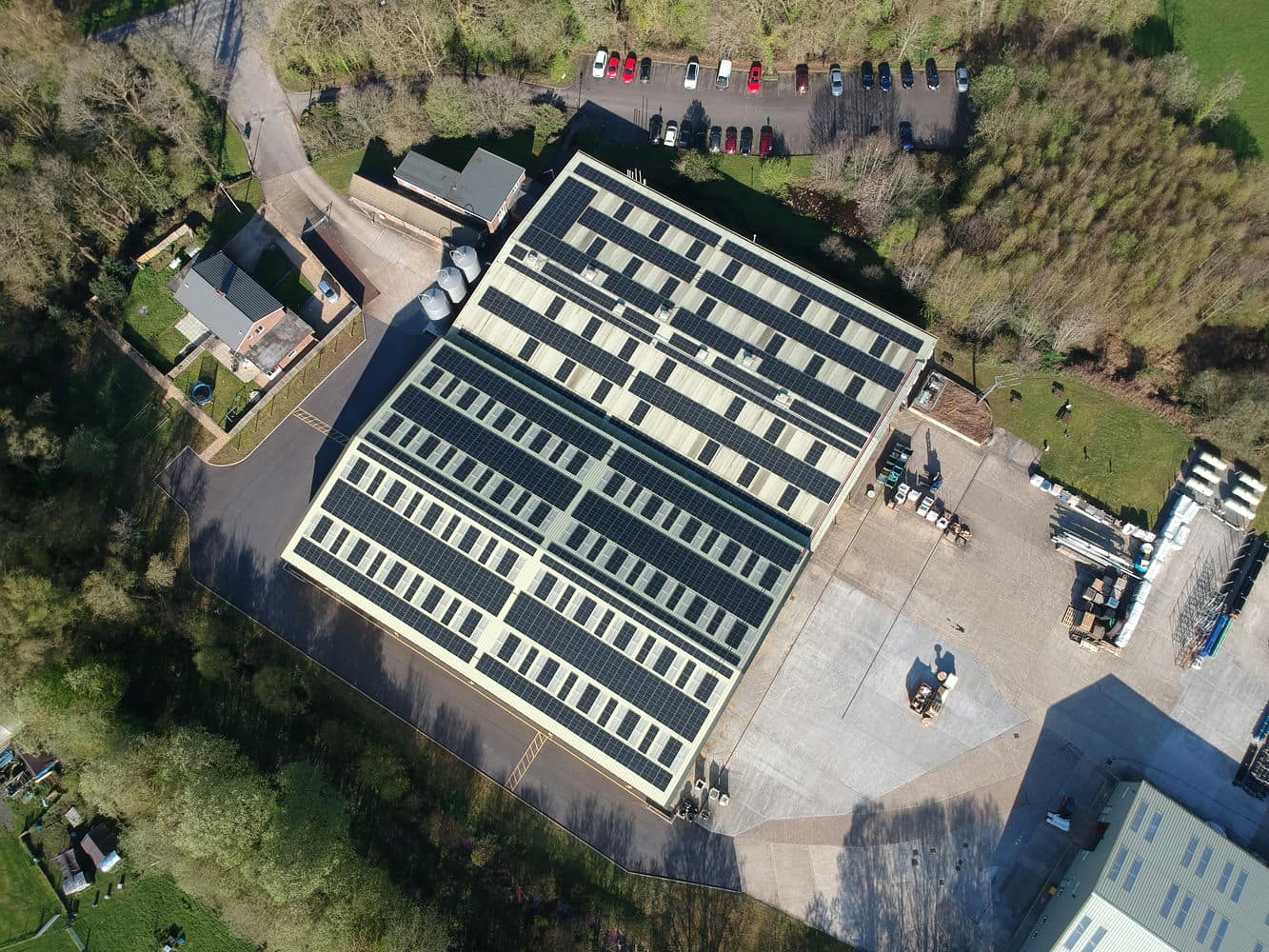

CPV is working to the requirements of the ISO 14001 Environmental Management System and is currently in the process of certification. The company has also introduced its own renewable energy system with a large-scale solar PV array that will ensure its production process is sustainable as possible.
