Full system support
When installing Hiline Steel systems, it is recommended that an electronic surveillance system is included in order to constantly monitor the insulation for the ingress of moisture. This provides peace of mind that should the outer casing be damaged by future street works, the presence of groundwater in the insulation can be picked up, located and repaired before any damage is caused to the service pipe.
We offer full a range of systems and supporting services for the main types of surveillance technologies, including the Nordic, Brandes and HDW systems.
CPV Ltd is also the UK distributor for DASL Systems Ratmon leak detection system that is perfect for use with our Hiline pre-insulated steel pipe systems

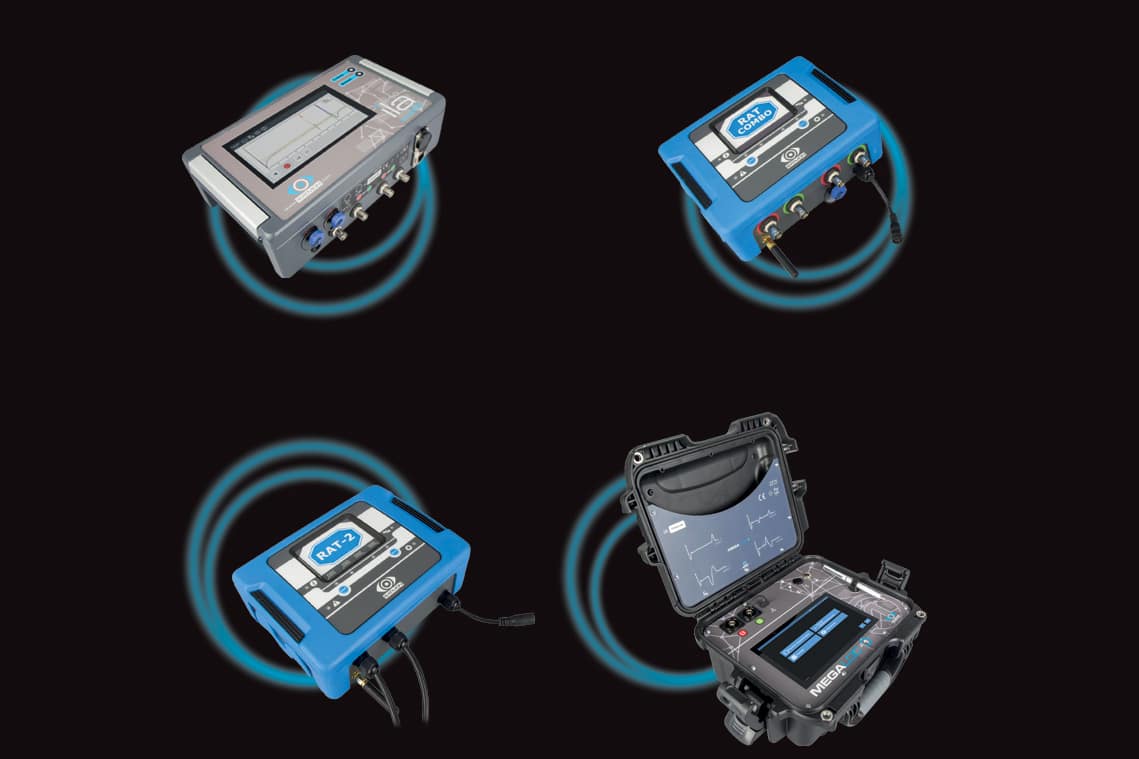

Complete range
RATMON is a leak detection system that carries out 24/7 remote supervision over a pre-insulated pipe network. Installed detectors automatically send all measuring data to a server, enabling the operator to be kept fully informed about the state of the network and the possible occurrence of an alarm.
The operator has access to the system from anywhere with an internet connection. In the event of detecting a leak, the system automatically sends alarm notifications to the network supervisor.
System Details
- Automated data transfer from detector to the server
- Full data analysis for selected pipe loop
- Automated analysis of TDR curve
- Alarm notifications by SMS, e-mail
- Configuration of alarm thresholds and notifications
- Data visualization by chart or table
- History of measurements
- Drawing of pipe loops on the google.maps
- Printing of documentation and reports
- Inventory of network elements
- Access to the system from any place
- Access to the system regardless the operating system
- Monitoring and configuration of detectors

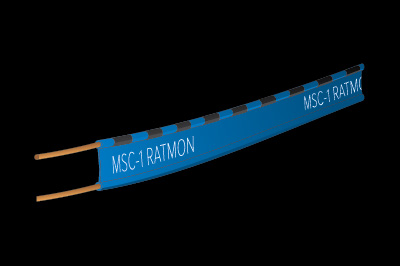

Sensor Cable
RATMON’s patented solution of two double wire MSC-1 cables enables precise detection and location of faults in pre-insulated pipes, used in district cooling and heating. Fully insulated cables, mitigates the risk of false alarms, caused by condensation effect. It is also great solution for monitoring of pre-insulated plastic pipes, straight or PEX type, where using of conventional alarm wires is not efficient.
