Introduction
While rehabilitating old heat network service pipes with CarboSeal@, the old pipe remains in the ground, with no need to excavate or refill the area nor to take care of the old pipe. By avoiding excavation, the carbon footprint of producing, installing and refilling is reduced by at least 80%. The system is designed to completely take over the workload of the host pipe, leaving it fully renewed.
Non-invasive
The underground pipe system is renewed without disturbing the activities above the pipe. Traffic, businesses, and other activities are left uninterrupted during the process. It is a fast. cost efficient and sustainable solution for district heating pipe system rehabilitation.
Verified
Thorough work by Research Institute of Sweden (RISE) and other partners PPR has proved that CarboSeal® can overcome the issues encountered by conventional trenchless technologies when applied to district heating pipes.
Installation steps
- Opening and cleaning the host pipe
- Inspection and dimension control

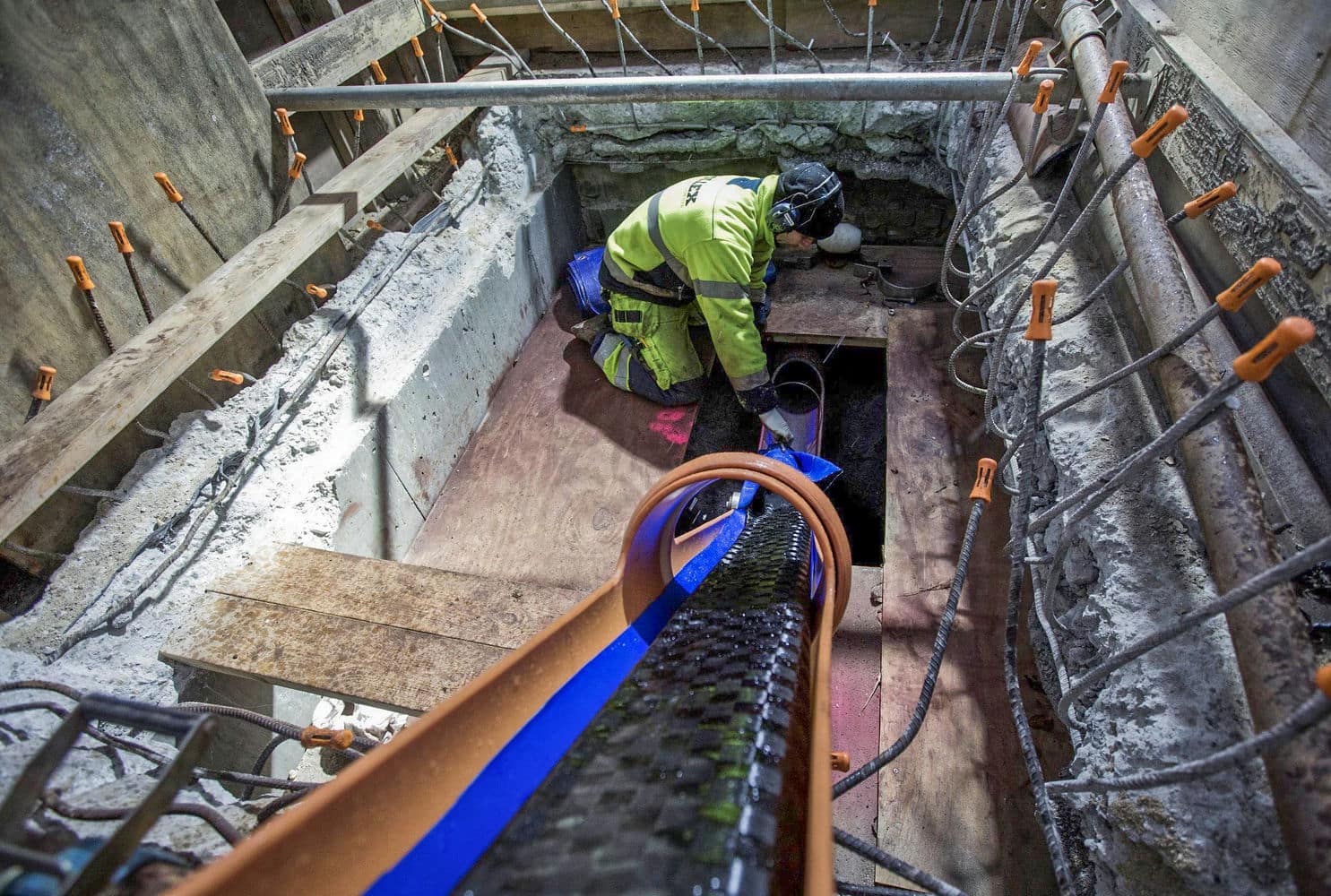

- Pull in the liner
- Curing the liner with steam
- Reconnecting the renewed pipe
Efficient & Sustainable Relining
Distances of up to a few hundred metres can be relined in one working day, with little or no excavation. Fast, simple and sustainable.
- Withstands 130°C and 16 bar pressure or more
- DN 100mm to 500mm (other available on request)
- Resists hydrolysis
- No loss of fiber surface properties over time
- Long-term resistance to hot water
