CPV’s next generation pre-insulated pipe system brings to market the most efficient solution to further enable heat networks to play their leading role in the drive to decarbonise heat
As a pioneer in the advancement of polymer piping systems, CPV has developed an extensive portfolio of solutions that have served both past and current heat network generations, challenging convention and driving efficiencies. Built on this experience, Hiline Clover now offers the optimal solution to drive the efficiency of fourth and even fifth-generation ambient loop heat networks.
Innovative Joints
Clover service pipe jointing is by means of proven fusion welding by either butt-fusion or electro-fusion technologies. Casing pipe joints also offer the option of electro-fusion oversleeves.

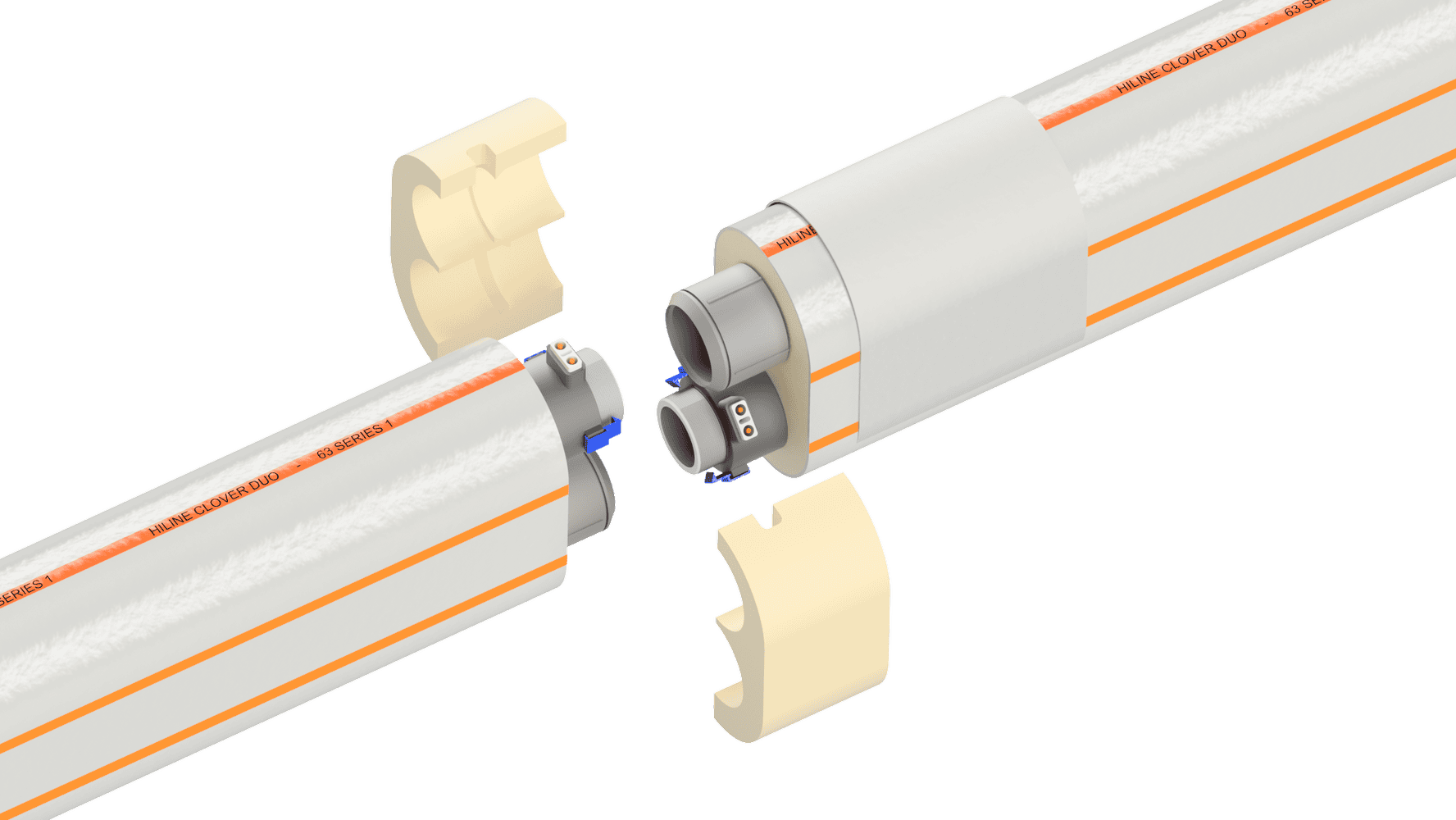

An innovative Clover ClickWeld system allows for pipe and fitting assemblies to be supplied with factory-fitted electro-fusion connections – offering fast track site installation as a push-lock-fuse process.

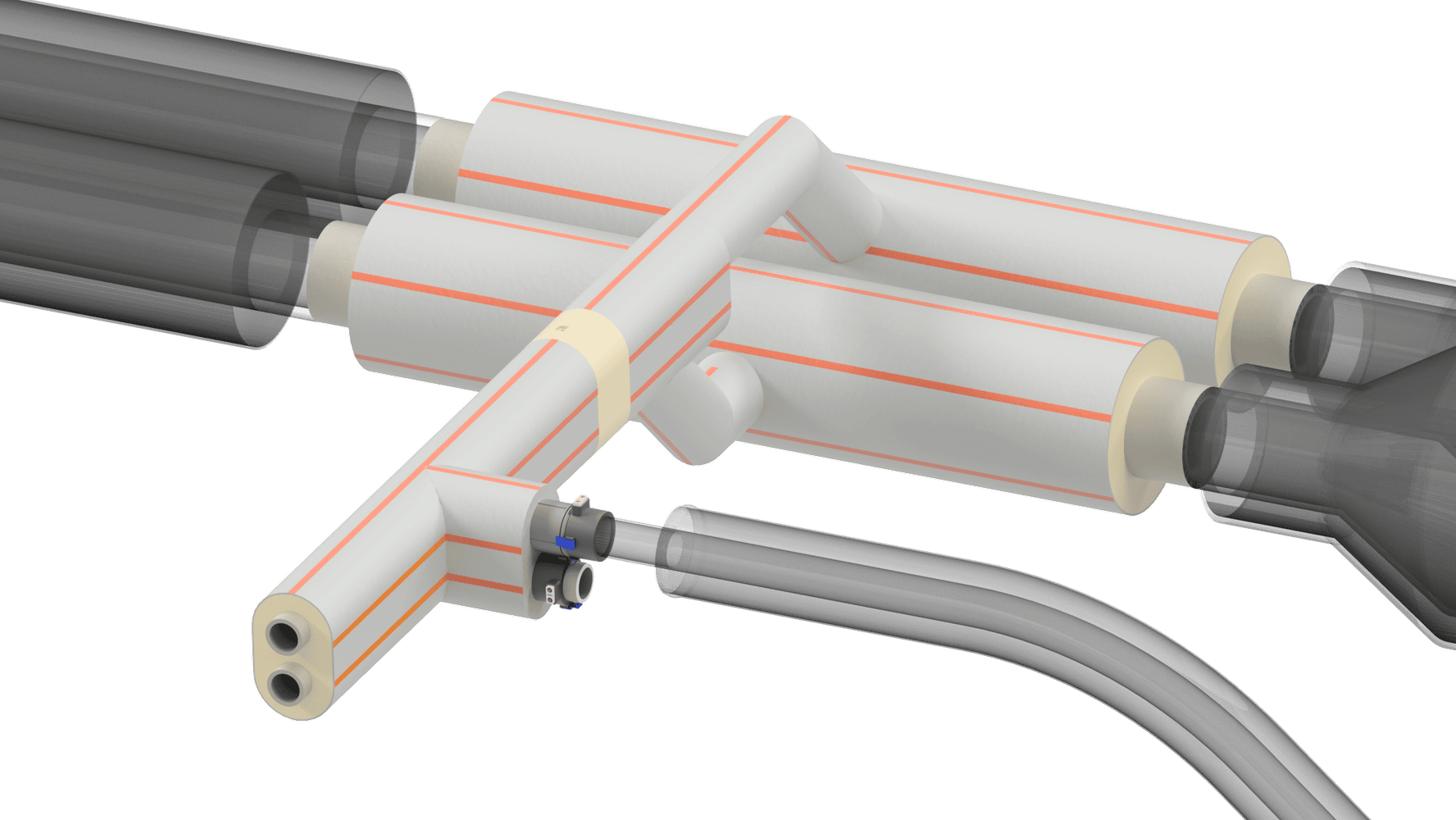

Easier to Integrate
Hiline Clover is part of a wider range of advanced pre-insulated pipe systems that provide seamless interconnectivity. This also applies to other manufacturers' systems with service pipes in materials such as steel, polymers, etc.
Easier to Integrate
Hiline Clover is part of a wider range of advanced pre-insulated pipe systems that provide seamless interconnectivity. This also applies to other manufacturers' systems with service pipes in materials such as steel, polymers, etc.

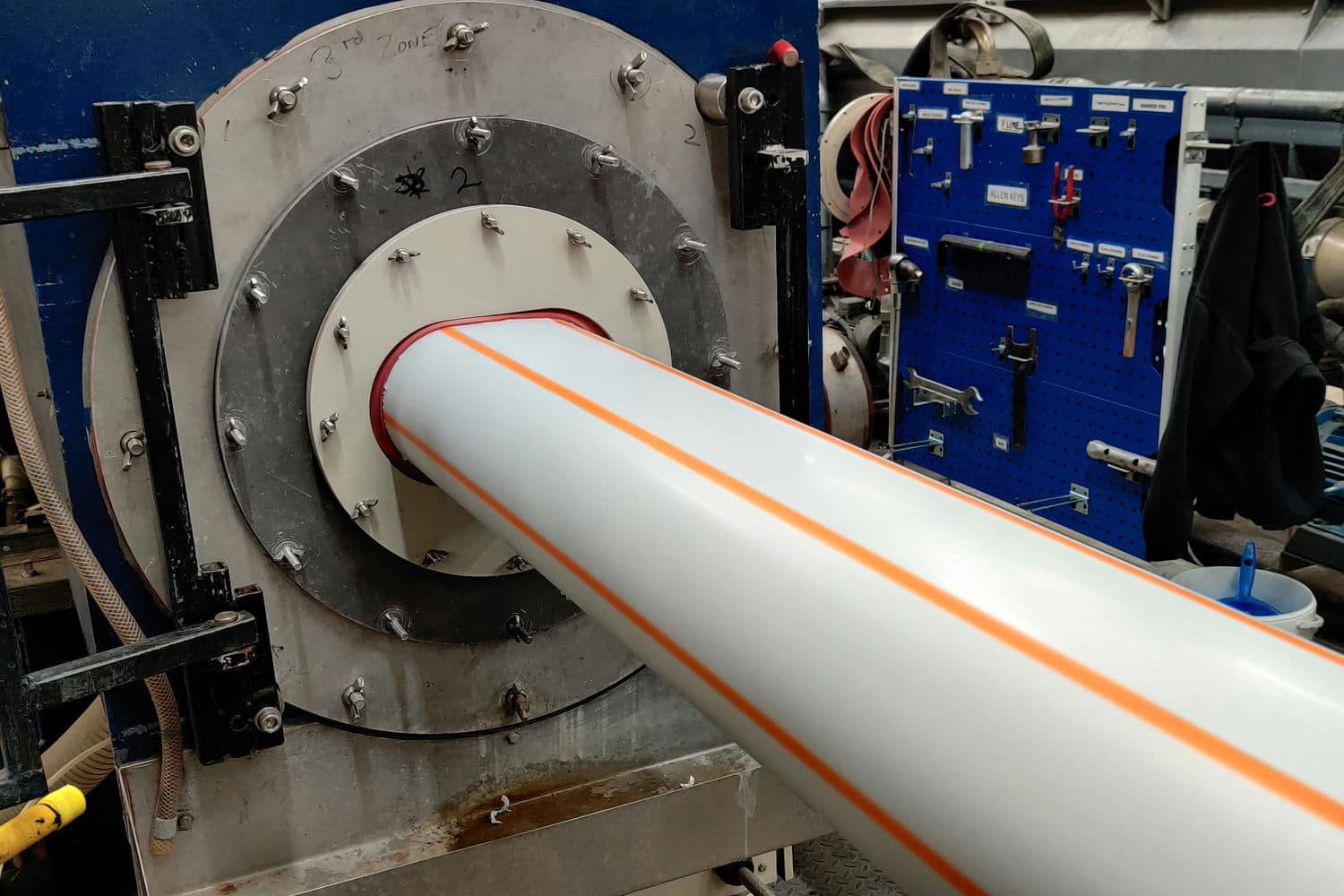

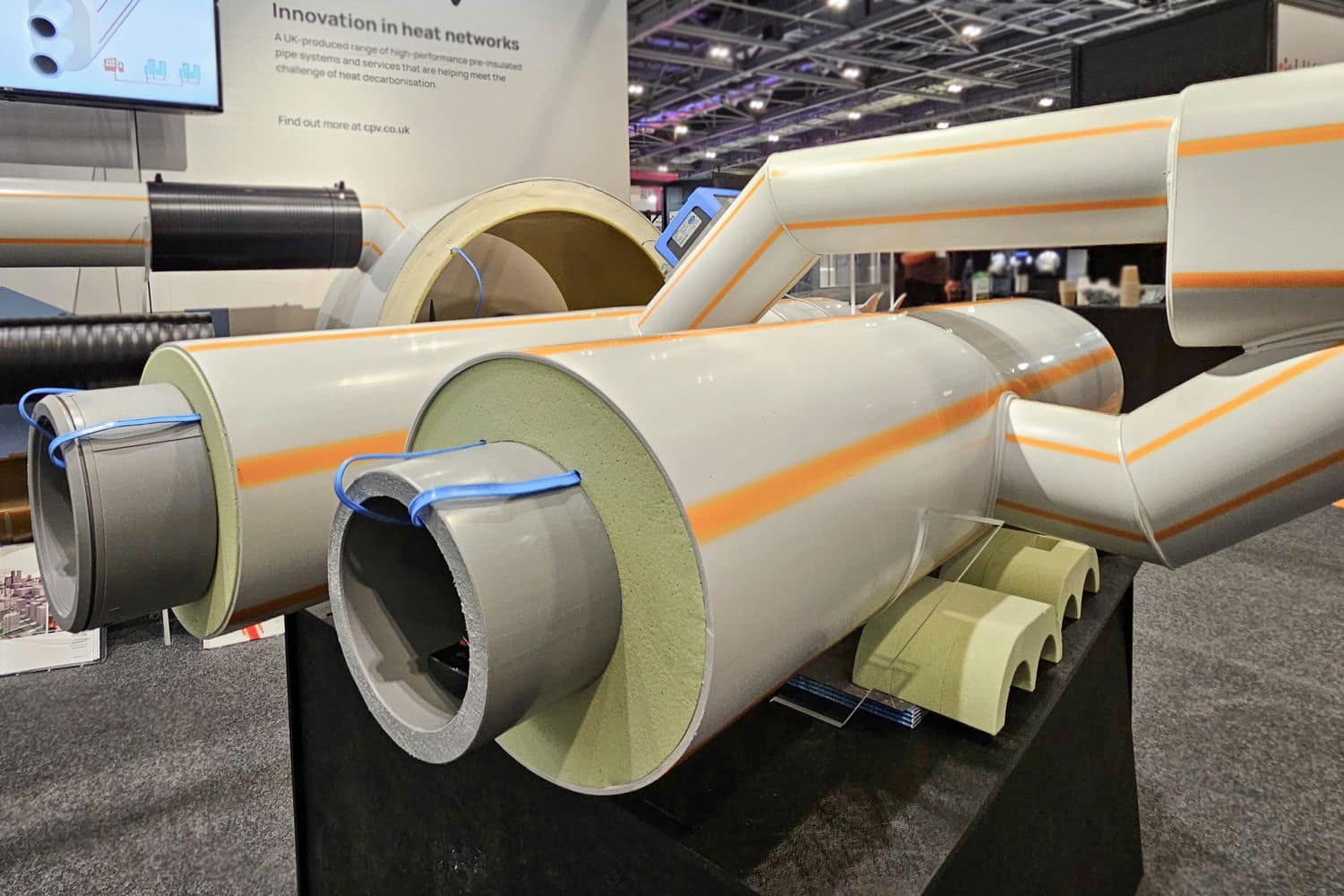

Tough Outer Casing
Hiline Clover is distinguishable by its light grey outer casing with permanent, orange-coloured identification stripes. This casing is manufactured from a high-strength polymer material to provide exceptional mechanical properties and resistance to all ground conditions for a full, uncompromised service life.
Heat Loss

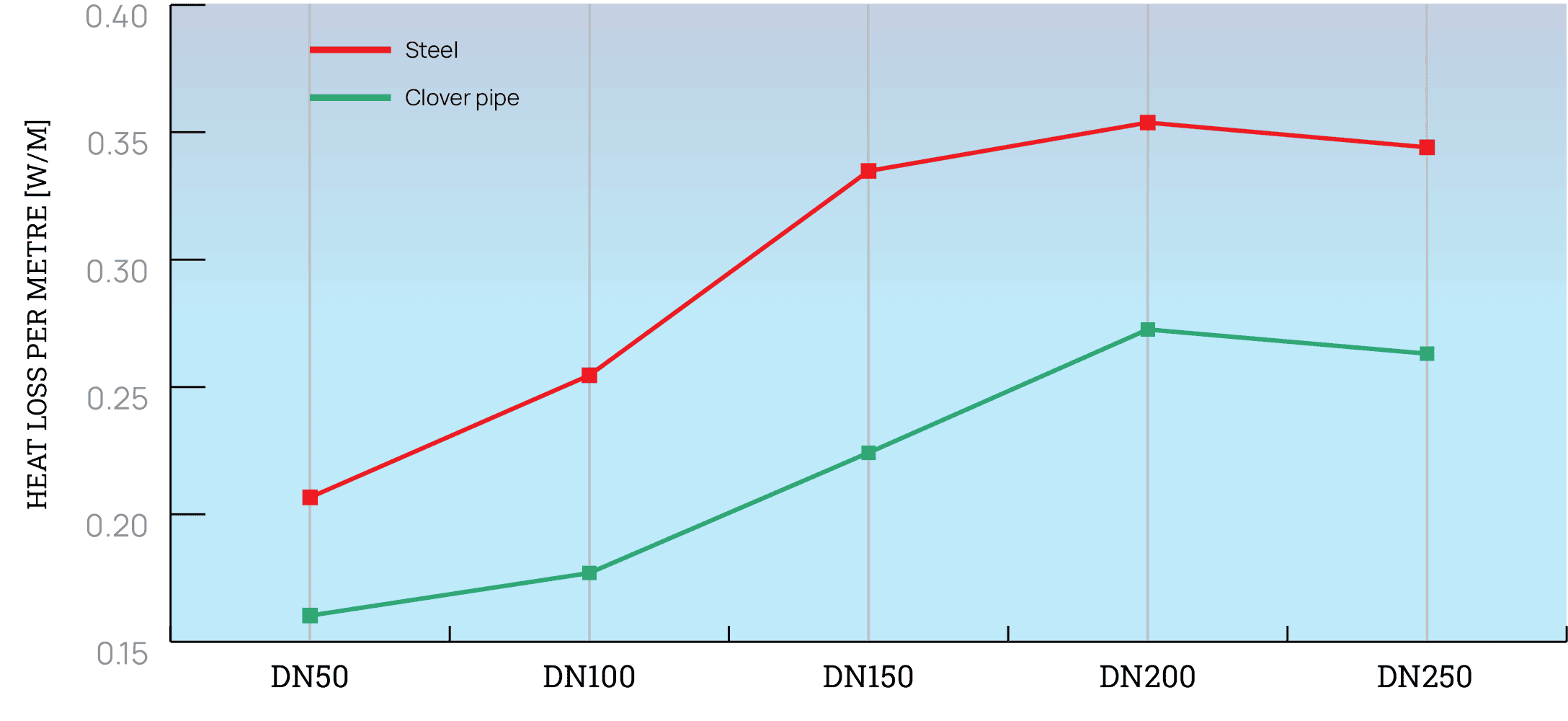

Hiline Clover utilises a water-blown PUR foam with a Lambda value of 0.021 W/mK and is manufactured with an insulation thickness aligned with Series 2 within EN253 standards. When compared with typical pre-insulated carbon steel Hiline Clover demonstrates an improved thermal efficiency and therefore reduces heat losses.
Comprehensive Range
Hiline Clover offers sizes from DN20 to DN250, with continuous operating temperatures up to 80°C and peaks up to 95°C. The system’s performance capabilities and trouble-free 50-year service life expectancy are validated by compliance with international material performance standards.
It is compatible with CPV’s other ranges of pre-insulated composite polymer pipe systems to provide both flexible pipes and large diameter pipes up to DN600.
It is compatible with CPV’s other ranges of pre-insulated composite polymer pipe systems to provide both flexible pipes and large diameter pipes up to DN600.
Efficient insulation
Arguably the most thermally-efficient pre-insulated piping solution, Hiline Clover is insulated with environmentally-friendly water-blown PUR insulation, having exceptional thermal conductivity values and configured to minimise heat loss.
Efficient insulation
Arguably the most thermally-efficient pre-insulated piping solution, Hiline Clover is insulated with environmentally-friendly water-blown PUR insulation, having exceptional thermal conductivity values and configured to minimise heat loss.

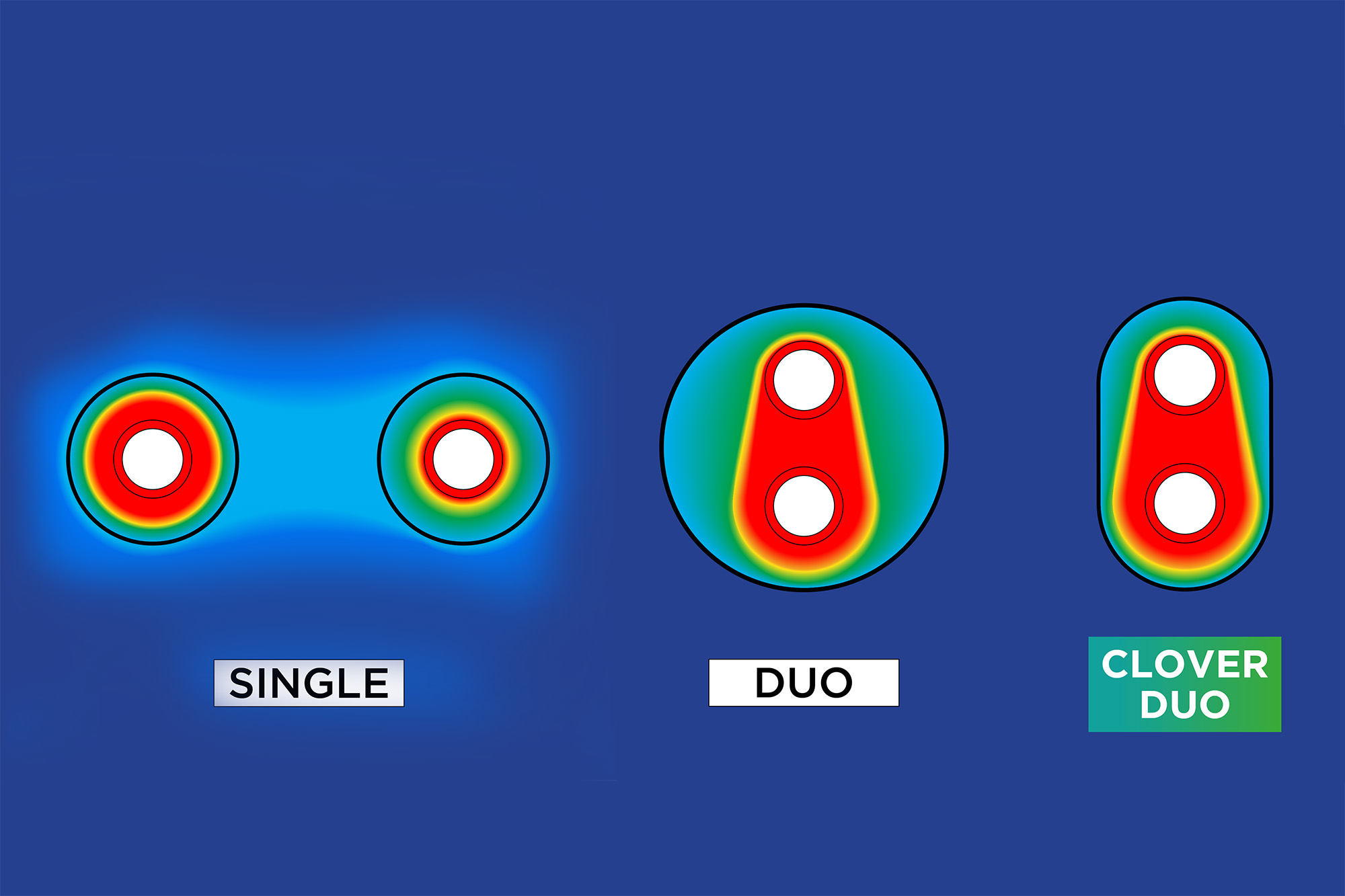

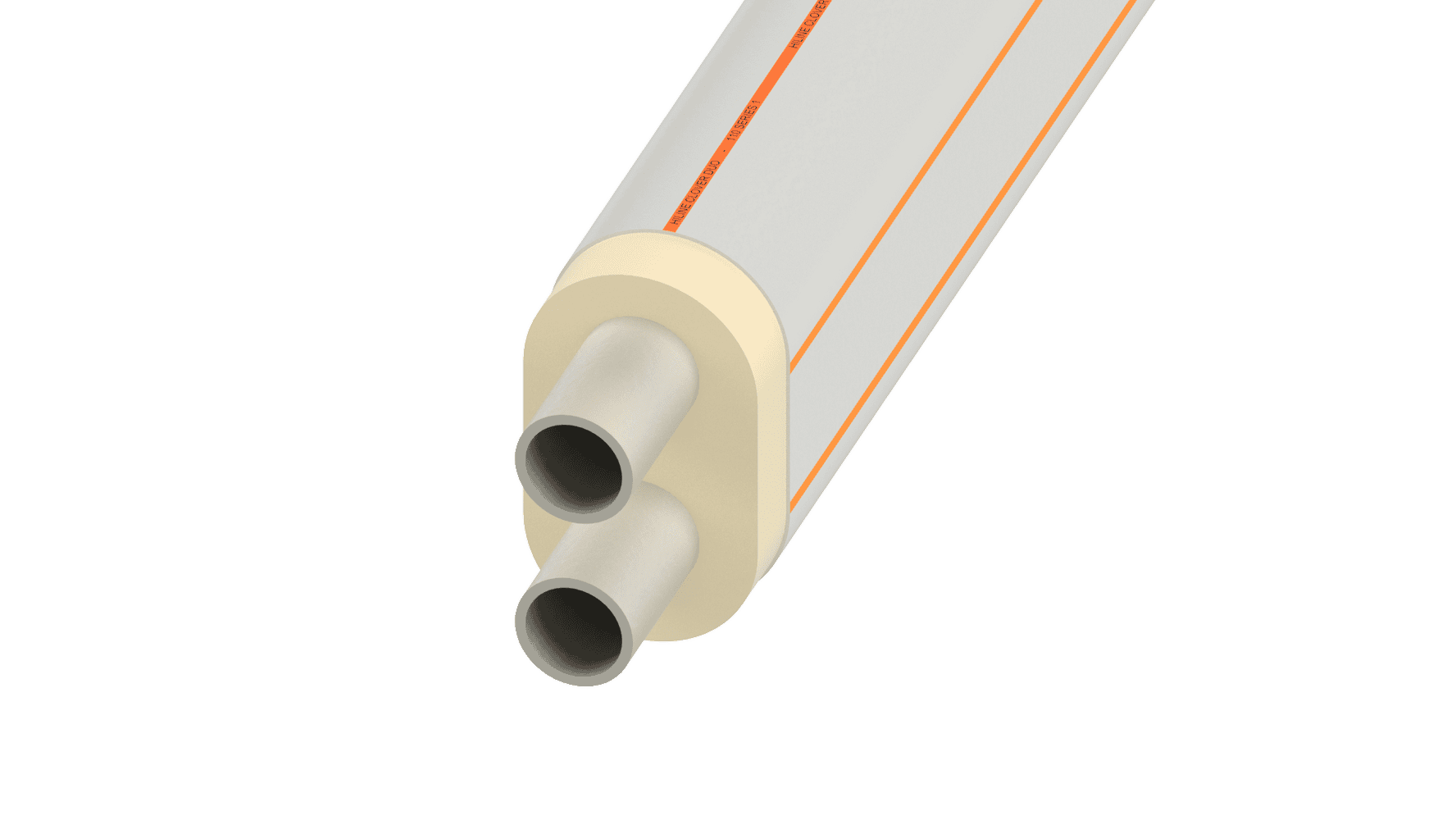

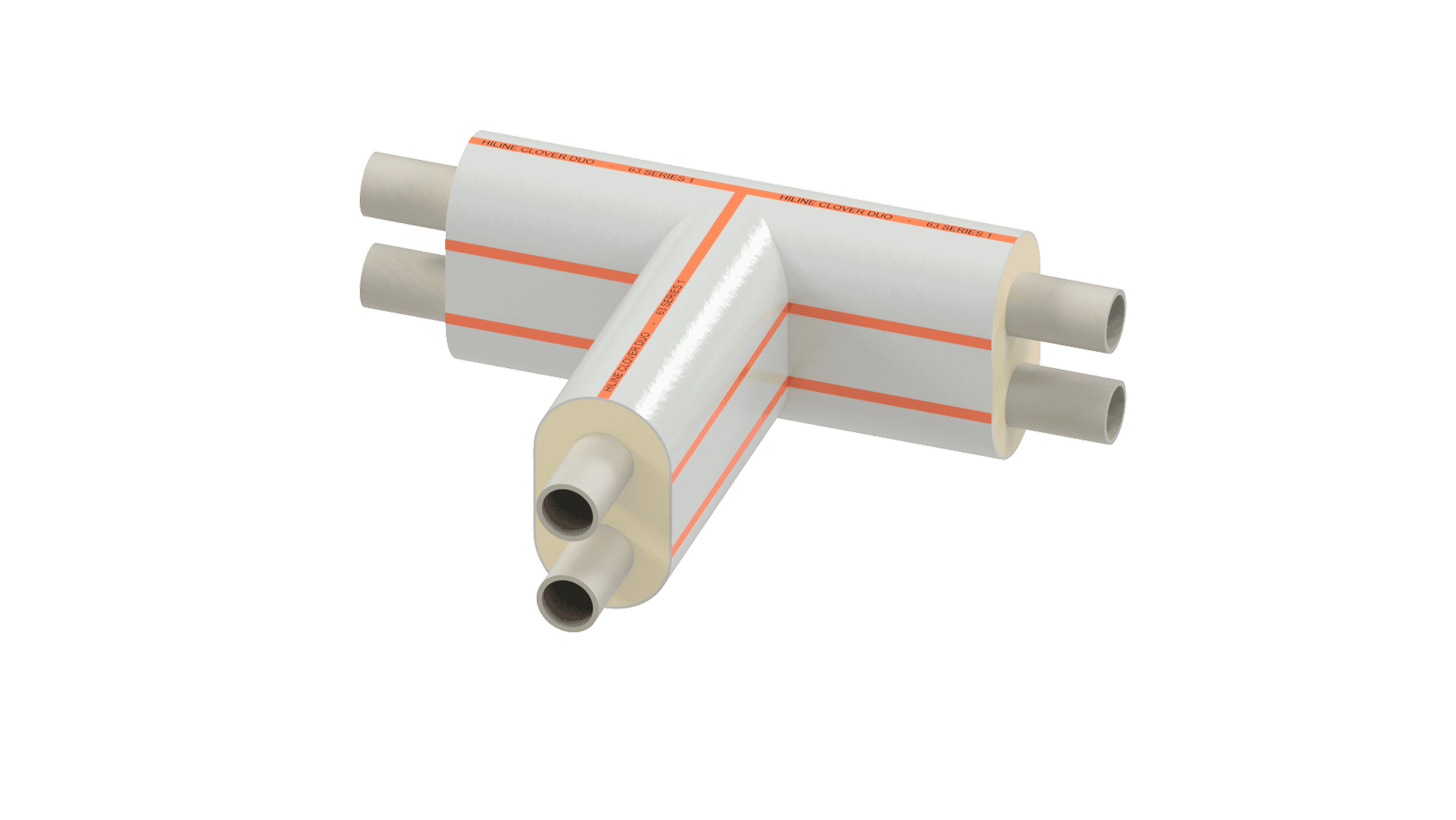

Unique DUO
With both the flow and return pipes having a unique ‘stadium’ shaped single casing pipe, it offers maximum thermal efficiency whilst minimising piping insulation materials. This allows trench widths to be reduced and thereby lowering the cost of installation.

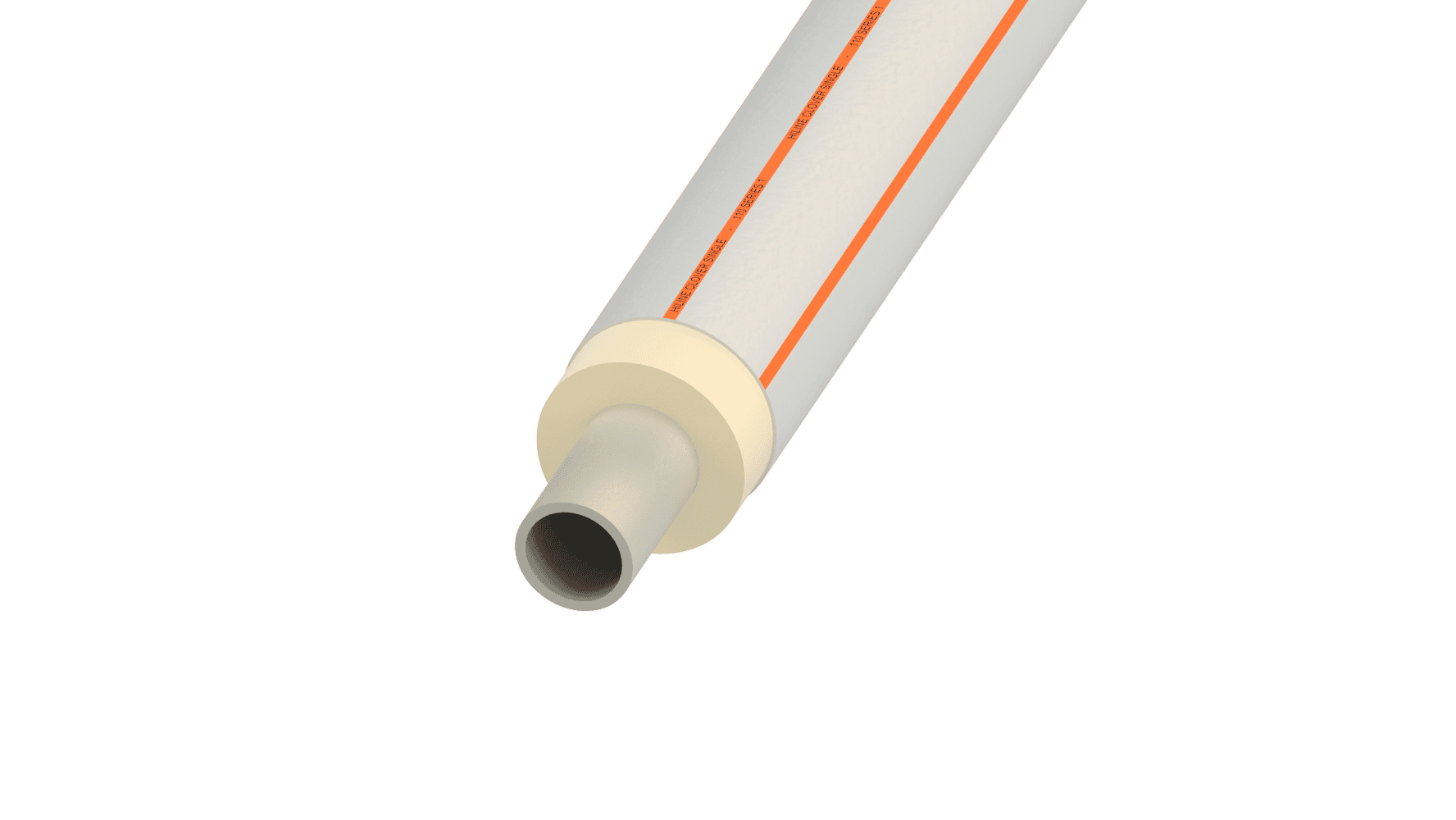

Hiline Clover UNO
| Size | Bore/s (mm) | Casing (mm) |
|---|---|---|
| DN20 | 19.4 | 110 |
| DN25 | 24.9 | 110 |
| DN32 | 31.1 | 125 |
| DN40 | 38.9 | 125 |
| DN50 | 49.0 | 140 |
| DN50/65 | 58.3 | 160 |
| DN65/80 | 70.0 | 180 |
| DN80/100 | 85.6 | 225 |
| DN100 | 97.2 | 250 |
| DN125 | 124.4 | 280 |
| DN150/200 | 175.0 | 355 |
| DN200/250 | 217.8 | 450 |
| DN250 | 245.0 | 500 |
* Bore dimensions based on SDR9 pipe and with also SDR11 available on request
Hiline Clover DUO
| Size | Bore/s (mm) | Casing (mm) |
|---|---|---|
| 2 x DN20 | 2 x 19.4 | 110 / 168 |
| 2 x DN25 | 2 x 24.9 | 110 / 171 |
| 2 x DN32 | 2 x 31.1 | 125 / 200 |
| 2 x DN40 | 2 x 38.9 | 125 / 205 |
| 2 x DN50 | 2 x 49.0 | 140 / 234 |
| 2 x DN50/65 | 2 x 58.3 | 160 / 268 |
| 2 x DN65/80 | 2 x 70.6 | 180 / 305 |
| 2 x DN80/100 | 2 x 85.6 | 225 / 380 |
* Bore dimensions based on SDR9 pipe and with also SDR11 available on request

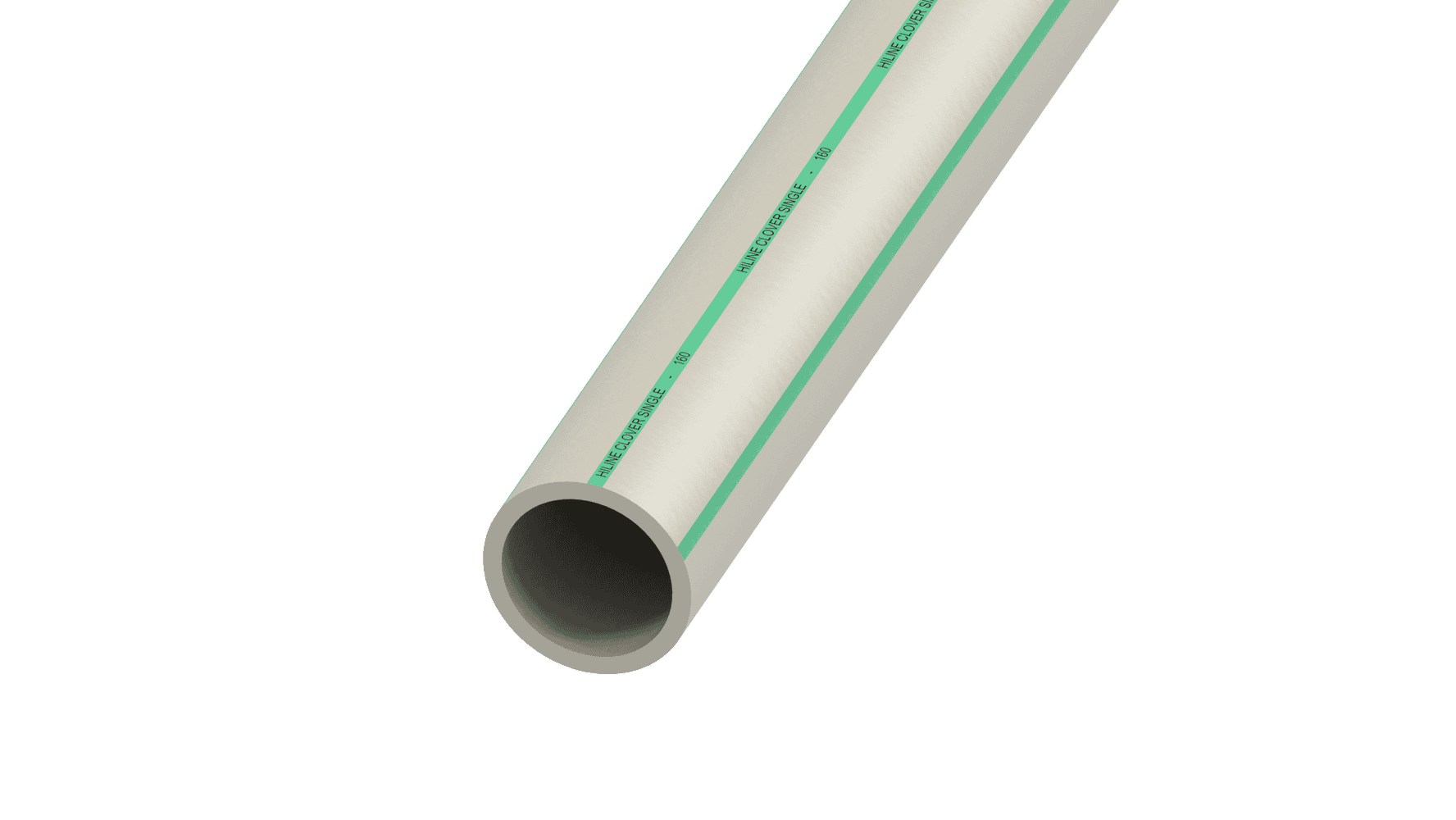

Hiline Clover Ambient
| Size | Bore/s (mm) |
|---|---|
| DN40 | 40.9 |
| DN50 | 51.5 |
| DN50/65 | 61.4 |
| DN65/80 | 73.6 |
| DN80/100 | 90.0 |
| DN100 | 102.3 |
| DN125 | 130.9 |
| DN150/200 | 184.1 |
| DN200/250 | 229.1 |
| DN250 | 257.7 |
* Bore dimensions based on SDR11 pipe and with also SDR9 available on request
