Hiline eFlex

A highly-efficient pre-insulated PE-Xa pipe system that’s perfect for district heating and cooling applications.

The cross-linked polyethylene (PE-Xa) service pipe offers exceptional performance at temperatures up to 95°C and pressures up to 6 bar, making it perfect for district heating. Available in single and twin service pipe configurations, an integral EVOH barrier prevents oxygen diffusion into the media.

High-Performance Insulation

A layer of CFC-free flexible polyurethane foam puts the insulation in a league of its own – with minimal heat loss – Lambda value of 0.0216 W/mK (at 50°C). Unlike inferior pipe systems with an air gap, Hiline e-Flex’s composite construction – with its service pipe and outer casing bonded together by the foam insulation – means that thermal expansion can be ignored. Series 2 increased thickness insulation is also available.

Technical Specifications

	eFlex
Max continuous operating temperature (30 years)	80°C
Max peak operating temperature	95°C
Maximum Operating Pressure (30 years)	6 bar at 80°C
Thermal Conductivity	≤ 0.0210 W/mK
Service pipe	Cross-linked polyethylene (PE-Xa)
Outer casing	Seamlessly extruded corrugated LDPE
Insulation	PUR (CFC-free) - available in Series 1 and 2 insulation thicknesses

The eFlex pipe system is certified in line with EN 15632-1/2 as well as EN 12318-2, DIN 16892 & DIN 16893

Simple Installation

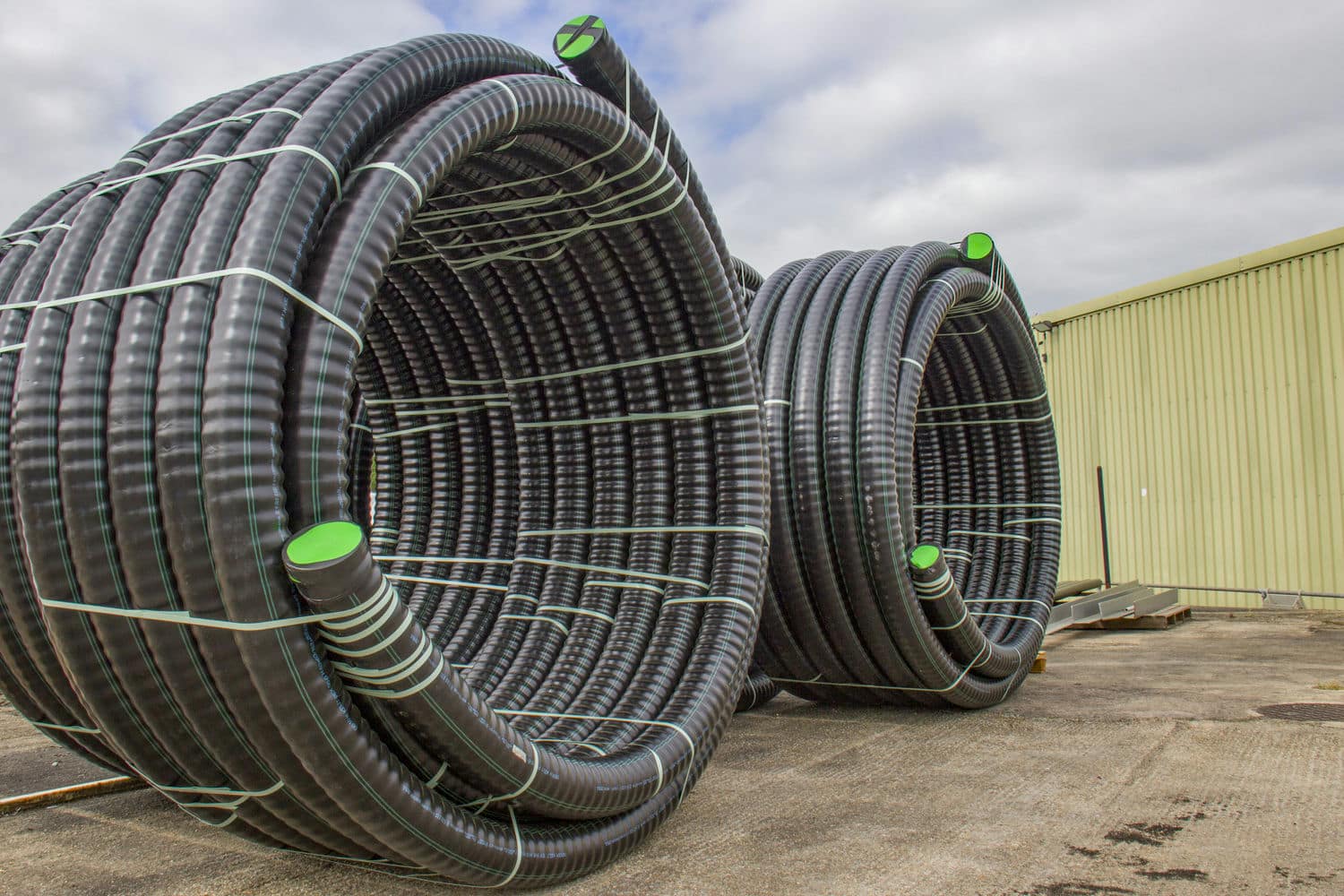

Delivered to site coiled in continuous lengths of up to 1,000 metres, on-site joints can be kept to a minimum making installation a quick process.

Robust and Adaptable Joints

The PEX-LOK axial compression service pipe jointing system is a fit-and-forget solution that offers the very highest levels of joint tightness and reliability.

Robust and Adaptable Joints

The PEX-LOK axial compression service pipe jointing system is a fit-and-forget solution that offers the very highest levels of joint tightness and reliability.

Shell Sleeves

Casing joints are similarly easy with shell sleeve kits that are supplied with all the necessary components to ensure quick and easy installation.

Cut, Coiled and Terminated!

To save the requirement of hiring specialist tools on simple projects, we can offer our clients a pipe termination service where our team can cut and coil your pipe to the exact length required, fit a wall entry sleeve, heat-shrink end cap and press-fit your choice of termination – typically a threaded union.
Please contact our technical sales team for details

Contact our Technical Sales Team

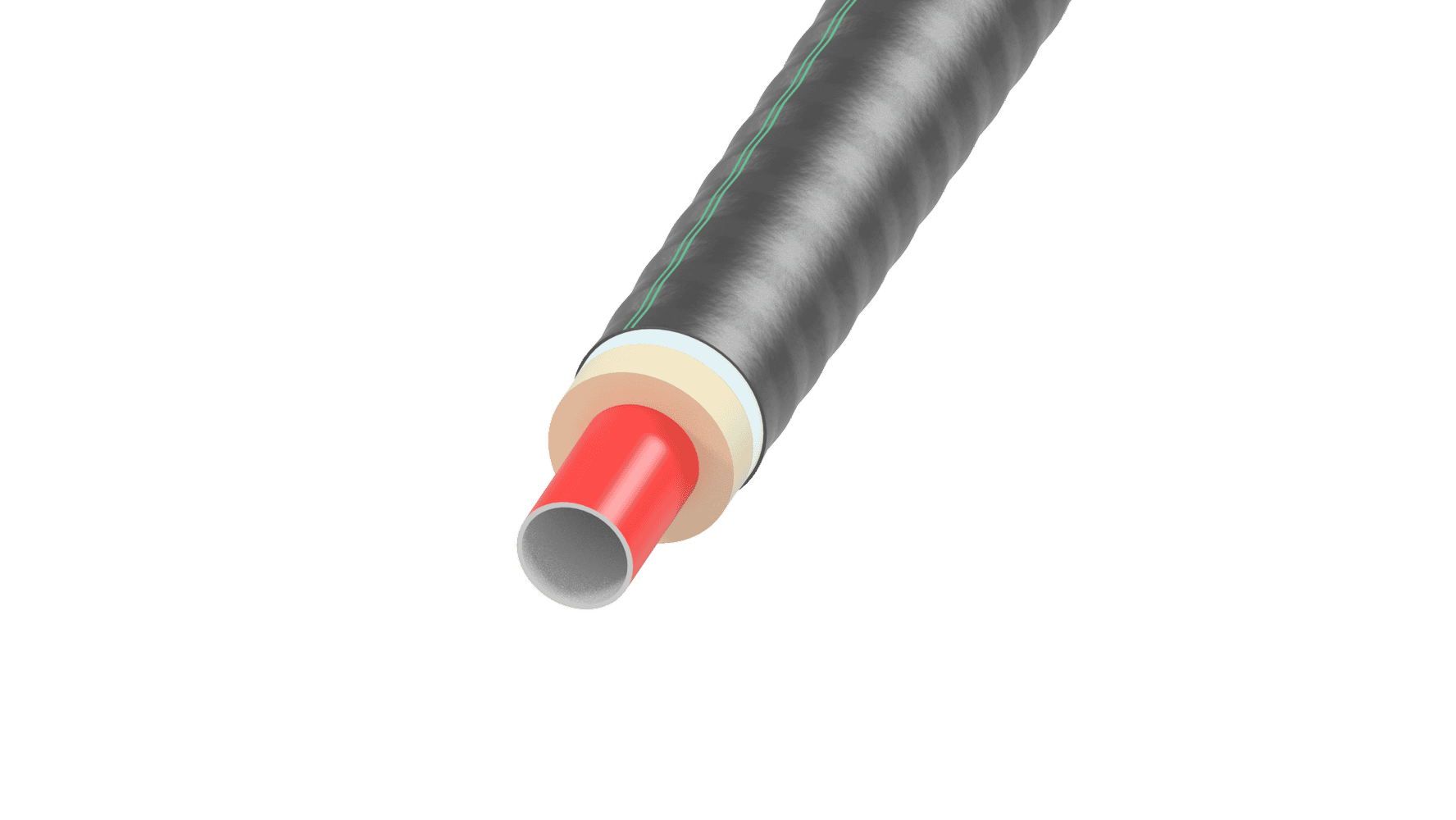

Hiline eFlex - UNO

Size	Service pipe	Nominal	Outer casing
	(d x s mm)	(DN mm)	(D mm)
25/ 76	25 x 2.3	20.4	78 x 1.9
32/ 76	32 x 2.9	26.2	78 x 1.9
40/ 91	40 x 3.7	32.6	93 x 2.1
50/111	50 x 4.6	40.8	113 x 2.3
63/126	63 x 5.8	51.4	128 x 2.7
75/142	75 x 6.8	61.4	143 x 2.9
90/162	90 x 8.2	73.6	163 x 3.2
110/162	110 x 10.0	90.0	163 x 3.2
125/182	125 x 11.4	102.2	183 x 3.3

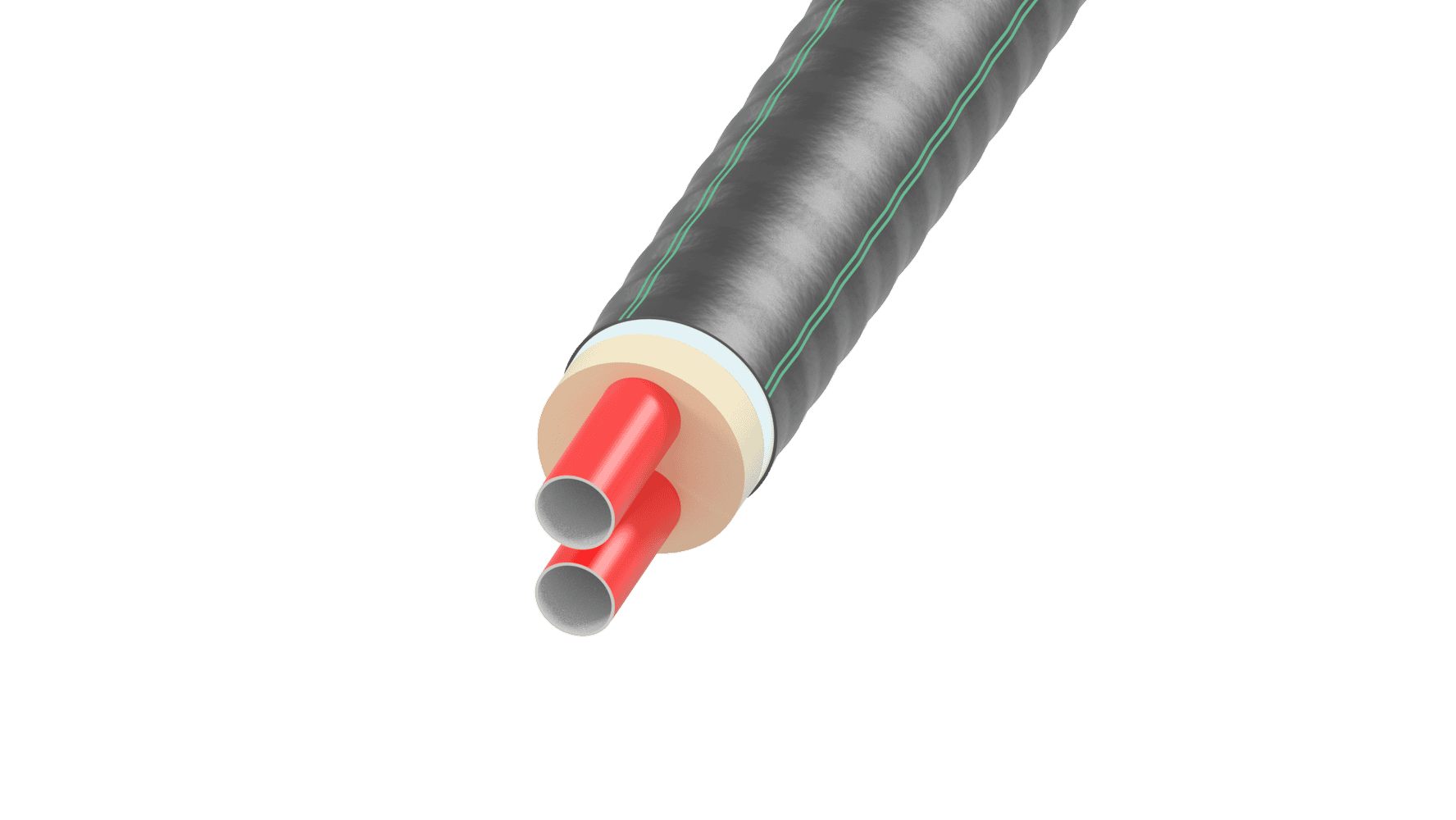

Hiline eFlex - DUO

Size	Service pipe	Nominal	Outer casing
	(d x s mm)	(DN mm)	(D mm)
25 + 25/91	2 x 25 x 2.3	20.4 + 20.4	93 x 2.1
32 + 32/111	2 x 32 x 2.9	26.2 + 26.2	113 x 2.3
40 + 40/126	2 x 40 x 3.7	32.6 + 32.6	128 x 2.7
50 + 50/162	2 x 50 x 4.6	40.8 + 40.8	163 x 3.2
63 + 63/182	2 x 63 x 5.8	51.4 + 51.4	183 x 3.3
75 + 75/202	2 x 75 x 6.8	61.4 + 61.4	202 x 3.3

Training and Support

As manufacturer, it’s important to us to ensure that our systems deliver exceptional performance throughout their working life. Therefore, we have established an array of world-class support services that help our clients every step of the way.

CPD Programme

CPV Ltd is CIBSE-accredited provider of CPD courses for Pre-insulated Heat Network Design and Specification

Electronic Surveillance Systems

We offer full a range of systems and supporting services for the main types of surveillance technologies, including the Nordic, Brandes and HDW systems.

CarboSeal Relining System

We are the UK representatives of the innovative CarboSeal relining system for buried heat networks. This enables failing networks to be repaired without the need to excavate the entire sections of pipe.
