A comprehensive corrosive waste pipe system for both above and below-ground applications

Featuring FUSEAL®, the system is the only thermoplastic chemical waste drainage in the UK, which has flame retardant properties. This provides added security to the end user. The distinctive colour and markings also give a clear identification. The jointing mechanism is unique and assists in a quick installation, with no grooving required. With electrofusion jointing technology also as standard, the lightweight data-storing welding machine makes installation hassle-free and easy to manage. Chemflo is a full-system solution from “sink to drain” with off-site fabrications ensuring a straightforward installation. The option of dual containment with Chemflo Plus provides added security when required.

One system, many applications

Suitable for use anywhere where mixtures of acids, bases and solvents are conveyed, where stainless steel, cast iron, clay and generic plastic materials fail to stand up to the corrosive nature of certain waste streams.

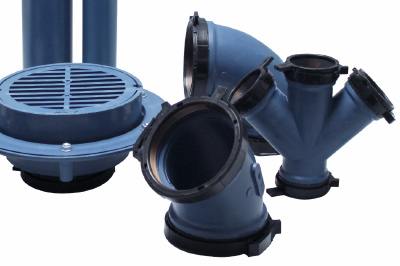

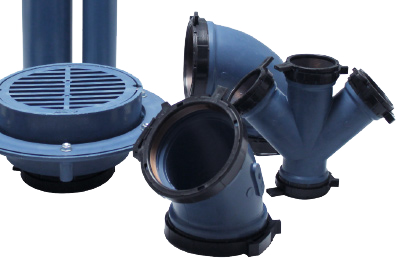

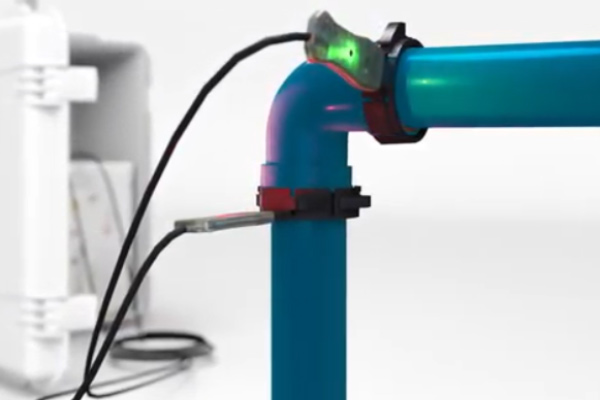

Fusion & Jointing

An engineer or contractor can combine the benefits of the Chemflo electrofusion joint and the mechanical joint in a single system. Chemflo can be used in inaccessible areas: the mechanical joint works well under benches, where speed of installation or future disassembly is needed. One lightweight welding machine can do all that is required on-site.

Above-ground applications

In above ground installations, the pigmentation protects the system from sunlight. Chemflo is resistant to ultraviolet radiation and is heat-stabilised to provide long life while handling hot reagents.

Below-ground applications

Whilst being perfect for above-ground systems, the Chemflo chemical drainage system is also a safe, secure and cost-effective choice for below-ground applications. Offering all the same benefits, the buried systems are additionally supported with a wide range of fittings, components and accessories that cover all possible configurations with fully bespoke options also readily available.

Corrosive Waste Pipe System

Featuring FUSEAL®, Chemflo thermoplastic corrosive waste piping system ensures the highest degree of protection from hazardous liquids, providing secure transfer of waste chemicals, keeping the environment and people safe.

  • Above and below-ground use
  • Complete system
  • Quick installation
  • No grooving required

A Full System Solution

Chemflo is a full-system solution from “sink to drain” with FUSEAL® pipe and fittings, along with off-site fabrications ensuring a straightforward installation. The option of dual containment provides added security when required.

  • DN38mm to DN152mm
  • Available up to DN457mm
  • Temperatures up to 100°C
  • Flame-retardant properties

One system, many applications

Manufactured in our UK production facilities Chemflo provides a full complete system - supported by the FUSEAL® of pipe and fittings.

  • EF, butt or mechanical joints
  • Dual-containment optional
  • Pre-fabricated assemblies
  • Components and accessories

    A Full System Solution

    Featuring FUSEAL®, Chemflo thermoplastic corrosive waste piping system ensures the highest degree of protection from hazardous liquids, providing secure transfer of waste chemicals, keeping the environment and people safe.

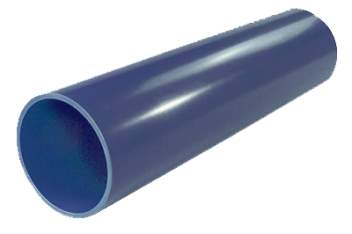

    Pipe

    Fittings

    Bench Fittings

    Floor Drains and Gullies

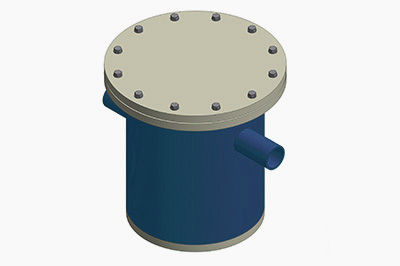

    Neutralisation Tanks

    PH Monitoring Systems

    Vents and Cowls

    Accessories

    Tools and Equipment

      Pipe

      Fittings

      Bench Fittings

      Floor Drains and Gullies

      Neutralisation Tanks

      PH Monitoring Systems

      Vents & Cowls

      Accessories

      Tools and Equipment

      Downloads

      Product Catalogues

      Chemflo (Fuseal) Product Catalogue (2020)

      Chemflo (Fuseal) Brochure

      Training and Technical Guides

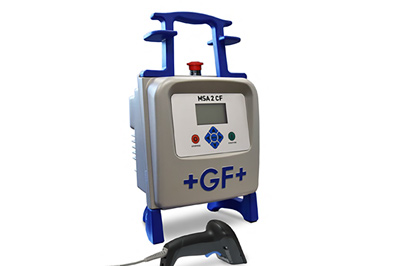

      Chemflo (Fuseal) MSA 2 CF Electrofusion Unit - Instruction Manual

      Chemflo (Fuseal) Training Guide

      Chemflo (Fuseal) LD Training Guide
